Roof Pitch Calculator

Complete Guide to Calculating Roof Pitch, Slope, and Rafter Length

Whether you are bidding a re-roof, checking whether your attic conversion matches code, or ordering trusses, roof pitch is the number that ties geometry to materials and labor. This guide walks through how to calculate roof pitch, interpret slope and angle, estimate rafter length, and use a roof pitch calculator the way experienced roofers and framers do on site — without guessing or mixing units.

How to Calculate Roof Pitch

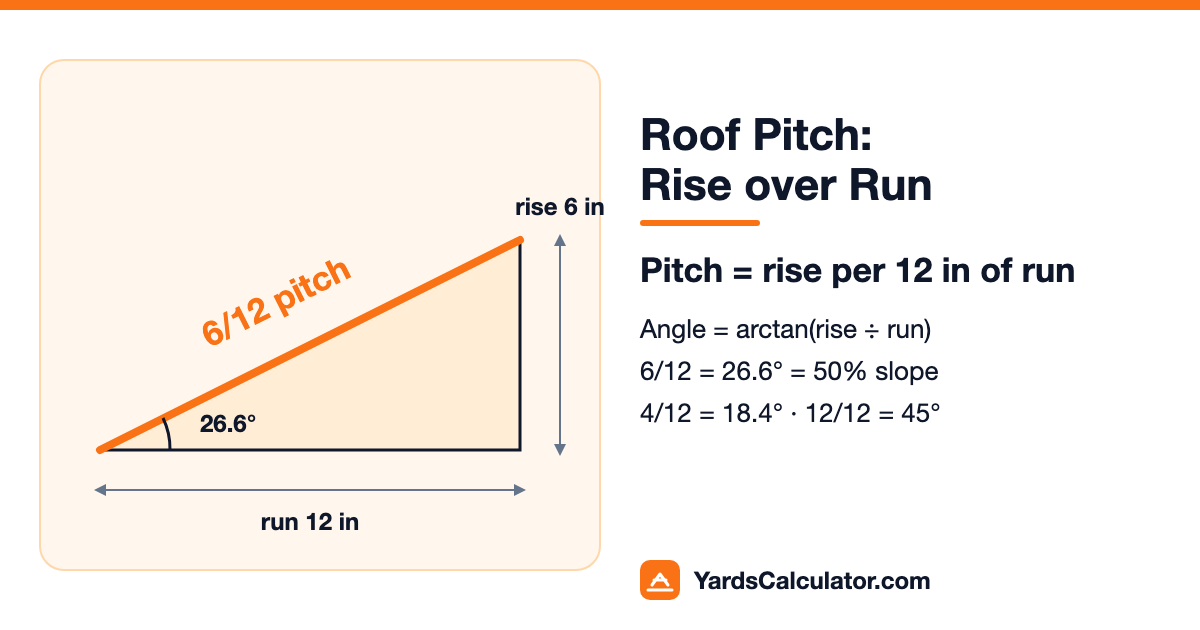

Roof pitch is rise divided by run. On paper, draw a right triangle where the base is horizontal run and the height is vertical rise. If rise is 6 feet and run is 12 feet, pitch as a decimal is 0.5. In U.S. roofing notation that is 6/12: six inches (or feet, when using consistent units) of rise for every twelve of run.

Field shortcut: hold a level 12 inches horizontally from the roof surface and measure vertical distance to the roof — that vertical number is the X in X/12. Our calculator accepts any rise and run pair in inches, feet, centimeters, or meters and converts internally, then displays X/12, slope percent, degrees, and rafter length together.

Roofing Slope Basics

Slope and pitch describe the same steepness in different formats. Slope percentage is (rise ÷ run) × 100. A 4/12 roof is 33.33% slope. Highway grades use percent; roofers more often say “four twelve.” When comparing to architectural drawings, confirm whether the plan shows pitch as ratio, percent, or degrees.

Low-slope roofs (below 4/12 in many climates) behave differently: water drains slower, wind uplift changes, and asphalt shingles may not be approved without special underlayment. That is why a dedicated roof slope calculator helps before you buy bundles — wrong pitch assumptions lead to wrong square counts and wrong product lines.

Roof Angle Calculations

Angle in degrees equals arctangent of rise over run. Example: 6/12 → atan(0.5) ≈ 26.57°. Steeper angles mean longer rafters for the same horizontal span, more roof area per floor square foot, and often higher wind exposure. Gambrel and mansard roofs have multiple pitches; calculate each plane separately — one global angle rarely describes the whole building.

Use a roof angle calculator when you need to match skylight curbs, solar rack tilt limits, or metal panel seam orientation. Framing crews still carry speed squares, but digital tools reduce transcription errors when emailing numbers to the office.

Residential Roofing Guide

Most U.S. single-family homes fall between 4/12 and 8/12. Four-twelve is walkable with care and economical on material waste; six-twelve is a common aesthetic balance; eight-twelve and above feel “steep” and may affect insurance and labor rates. HOA design guidelines sometimes mandate minimum pitch for appearance — verify before ordering.

Material choice interacts with pitch: standard asphalt shingles often require at least 2/12 or 4/12 depending on product and ice barrier rules. Tile and shake need solid decking and may need extra clips on steep slopes. Always read the manufacturer’s application chart for your exact pitch and climate zone.

Roof Framing Basics

Common rafter framing uses the rise-run triangle. Rafter length from outside of plate to ridge along the lumber line is √(rise² + run²) plus overhang and birdsmouth adjustments. Trusses arrive engineered — pitch is baked into the shop drawings — but field alterations and shed additions still need on-the-fly math.

Hip roofs add diagonal rafters and jack rafters; a simple pitch tool gives the main plane pitch, not every cut angle. Hip and valley lengths need separate geometry. Start with pitch from this roofing calculator, then use framing tables or layout apps for compound cuts.

Rafter Length Estimation

The Pythagorean theorem gives theoretical rafter length between ridge and wall for a straight gable plane. Add tail length for eaves, subtract for seat cuts, and account for ridge board thickness. Ordering lumber “by the rafter formula alone” without overhang often leaves you short on the tail.

For metric jobs, enter rise and run in meters; rafter length displays in meters. Convert to millimeters for ordering only after you add overhang and confirm whether the supplier sells by actual length or standard sticks (3.6 m, 4.2 m, etc.).

Roofing Terminology Explained

Span often means full building width wall to wall; run is usually half span on a symmetric gable. Rise is total height from plate to ridge. Pitch is rise/run ratio; slope may mean percent grade. Rafter is sloped framing; span line is horizontal projection. Clear vocabulary prevents ordering trusses labeled for the wrong span.

“Pitch” in some older texts means slope as a fraction of span (not run) — rare today but worth asking on legacy drawings. When in doubt, measure rise and run directly on site rather than inferring from total width alone.

Steep vs Low Slope Roofs

Low slope (roughly below 4/12): prioritize waterproof membranes, proper drainage, and mechanical attachment. Ponding water is a failure mode. Steep slope (above 8/12): prioritize worker safety, staging, and shingle hand-sealing; material slides easily. Snow sheds faster on steep pitches but sliding snow can damage gutters and landscaping.

Flat roofs in name are rarely zero pitch — “flat” commercial decks are often ¼/12 to ½/12 for drainage. Our flat roof type in the dropdown is a planning label; still enter actual rise and run from the structural slope, not zero.

Contractor Roofing Advice

Document pitch on every estimate packet: ratio, degrees, and plane dimensions. Photograph pitch gauges on existing layers before tear-off. When matching additions, calculate new work pitch to match old — even half an inch per foot visible over a long ridge looks unprofessional.

Pair pitch math with quantity tools: once pitch is known, roof area equals plan area adjusted by slope factor (secant of angle). For ground materials, link to our asphalt calculator for drives and concrete calculator for flatwork; roofing squares are a separate takeoff from pitch alone.

Using Metric Units

Enter rise and run in centimeters or meters. The calculator normalizes to feet internally for trig, then displays rafter length in your chosen unit. Metric countries may specify roof slope as degrees or percent on plans — use the detailed results panel to convert mentally to X/12 when ordering U.S.-style shingles or talking to distributors.

Gable, Hip, Shed, and Specialty Roofs

Gable roofs have two equal planes — one pitch often describes both. Hip roofs have four (or more) planes; pitch may match on all sides or vary on porches. Shed roofs are single-slope: one rise and one run. Mansard and gambrel use two pitches per side; run each segment separately. Selecting roof type in the tool labels your copied results for the crew; it does not change the triangle math.

Quality Checks Before You Order

Sanity-check: Does X/12 match what you see? A 12/12 is 45° — very steep. A 2/12 feels nearly flat. Compare slope percent to manufacturer minimums. Verify rafter length against a physical trial layout on one bay before cutting every stick on a cut list.

Roof Area and Pitch Factor

Plan area on a blueprint is not the same as roof surface area. For a simple gable, multiply footprint area by a pitch factor (sometimes called a slope factor) derived from the angle. For pitch X/12, the factor along the slope is √(1 + (X/12)²). Example: 6/12 → factor about 1.118. A 1,000 sq ft footprint becomes roughly 1,118 sq ft of roof per plane before waste.

Complex roofs need plane-by-plane takeoff: main gable, dormers, porches, and crickets each have their own rise and run. Use this calculator per plane, then sum surface areas and add 10–15% waste for hips, valleys, and cuts. That workflow keeps pitch math separate from shingle square counts so errors do not compound.

Codes, Snow, and Wind

Building codes tie minimum pitch to underlayment type, ice barrier extent, and fastening schedule. High snow-load regions may require steeper minimums or engineered trusses. Coastal wind zones affect allowable uplift on low slopes. Pitch alone does not prove compliance — always check local amendments and manufacturer listings for your exact product line.

Ready to frame or spec materials? Use the rafter length calculator above, explore all tools on YardsCalculator, and browse our roofing resources alongside asphalt, concrete, and gravel estimators for complete exterior project planning. Accurate rise and run measurements turn a simple ratio into trustworthy angles, lumber lists, and material choices.
